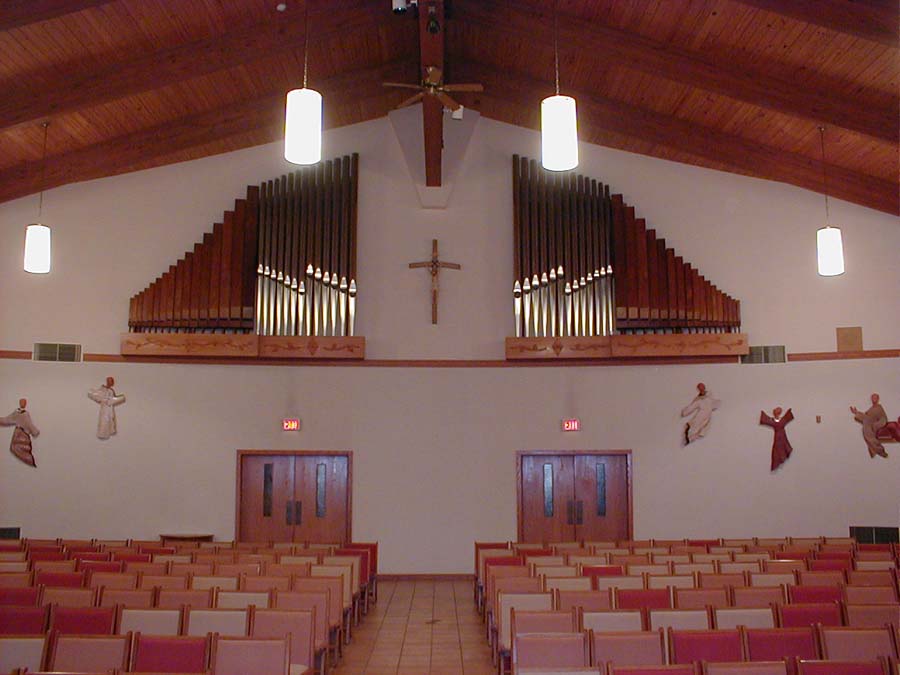

St Lawrence Church, Killingworth Connecticut

installED  Winter  2003

Tonal Specification

Great Organ – 11 stops, 11 ranks   3 ½” wind pressure – Manual II
1.       16’        Double Open Diapason
2.       8’          Principal
3.       8’          Diapason  (ext.)
4.       8’          Holzflöte
5.       4’          Octave
6.       4'          Koppelflöte
7.       2’          Super Octave
8.                   Fourniture, IV
9.       8’          Trumpet
10.                   Chimes
11.                 Zimbelstern
Choir (Positiv) Organ – 8 stops, 12 ranks   2 ½” wind pressure  – Manual I
12.     8’           Gedeckt
13.     8’           Dulciana
14.     4’           Rohrflöte
15.     2'           Principal
16.     1 1/3’      Larigot
17.     1'           Sifflöte
18.                  Scharff,  III-V
19.     8’           Krummhorn
                      Tremulant


Swell Organ – 12 stops, 15 ranks  2 ½ & 3 ¼” wind pressures – Manual III

20.     8'          Rohrflote
21.     8’          Salicional
22.     8’          Voix Céleste
23.     4’          Principal
24.     4’          Spitzflöte
25.     2 2/3’     Nasard
26.     2’          Nachthorn
27.                 Plein Jeu, III-IV
28.     1 3/5’      Tierce
29.     16’         Fagotto
30.     8’          Schalmei
31.     4’          Clairon
                     Tremulant


Pedal Organ – 11 stops, 7 ranks   3” wind pressure

31.     16’         Open Diapason   (gt)
32.     16’         Sub Bass
33.     16’         Lieblich Gedeckt
34.     8’           Principal (ext)
35.     8’           Bass Flute  (ext)
36.     4’           Choral Bass
37.     2’           Flute
38.                  Mixture, III
39.     16’         Fagotto  (sw)
40.     8’           Trumpet  (sw)
41.     4’           Clairon  (sw)

______________________________________________________________

This organ was originally installed at Wesleyan University in Middletown, Connecticut. It was built by the former Schlicker Organ Company of Buffalo, New York in 1962. The organ consultant was   E. Power Biggs of Boston.  The organ will be  reconstructed, revoiced and several stops will be  changed to suit the installation at St. Lawrence.

The pipework is primarily built of 70-75% tin by the Stinkens firm of Holland. The Schlicker (pitman) windchests are virtually straight, with the exception of the duplex action for the Swell reed stops and the unit 16' Principal. Wind is supplied by a new Ventus 1 hp blower, and several stages of Schwimmer-style regulators. The Wood flute stops are primary built of oak, except for the Lieblich Gedeckt, which is white pine.

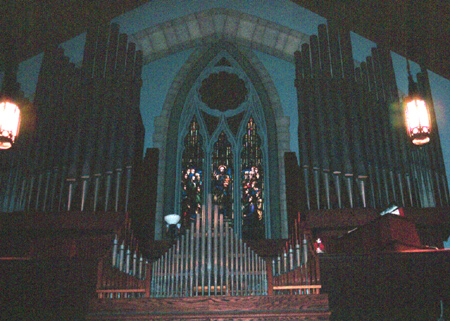

The Organ as it was installed at Wesleyan University



Peter Taylor singlehandedly

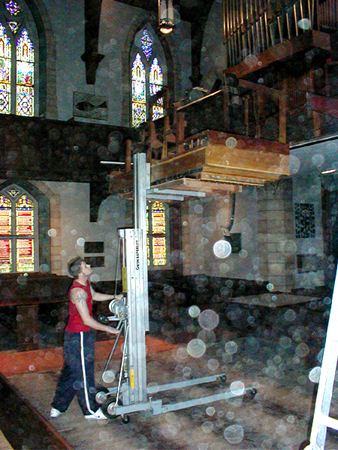

Cranking down the Positiv windchest

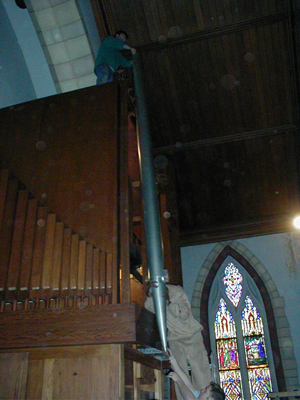

Removing the last 16' Principal (Mike Fazio on the top)
